Operators

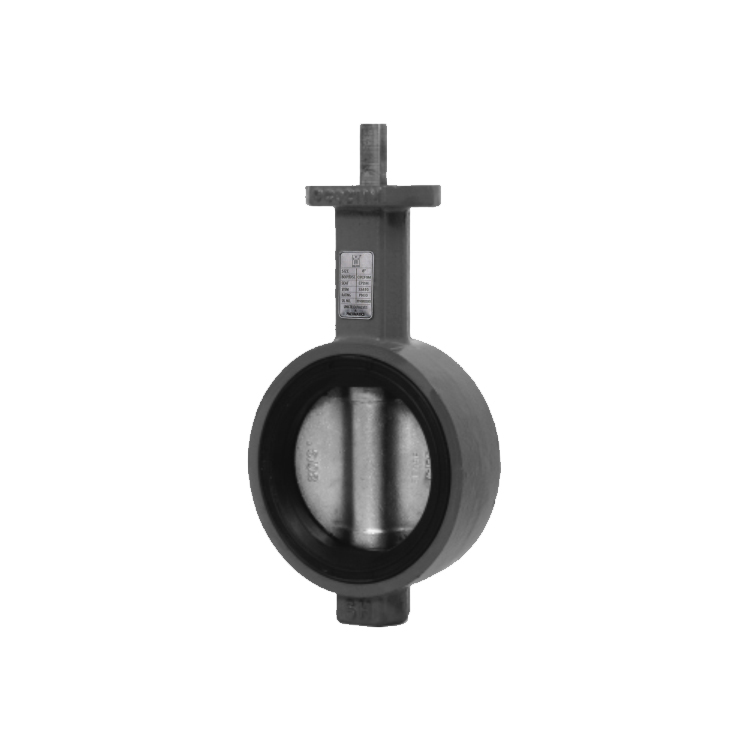

Bare Shaft
Valve up to Size 24" for customizes Operating System available in Different Shape & Size Stem Direct Mounting

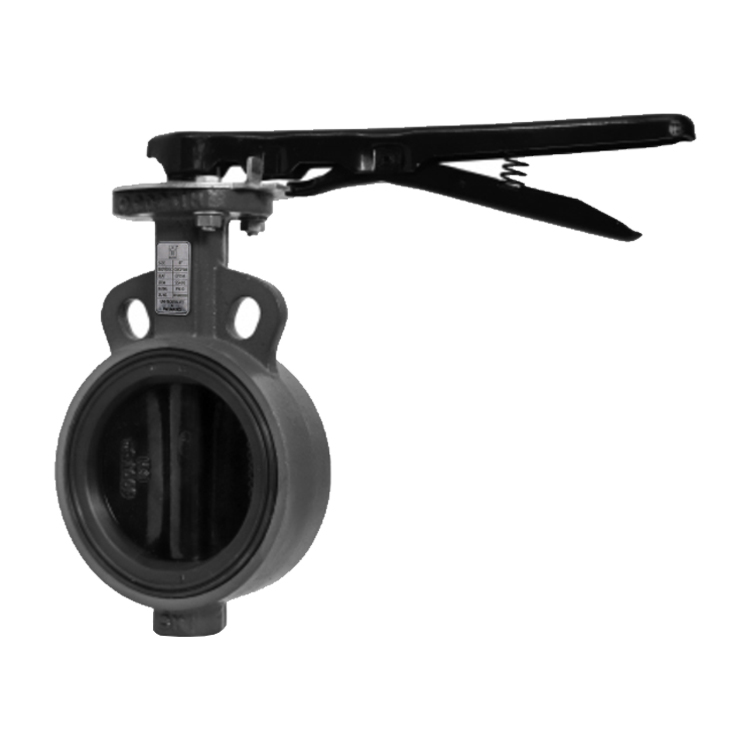

Lever
Valve up to 12" Size Depending on pressure rating can be supplied with lever handles for manual operation. Pad locking can also be provided for preventing unauthorized operation.

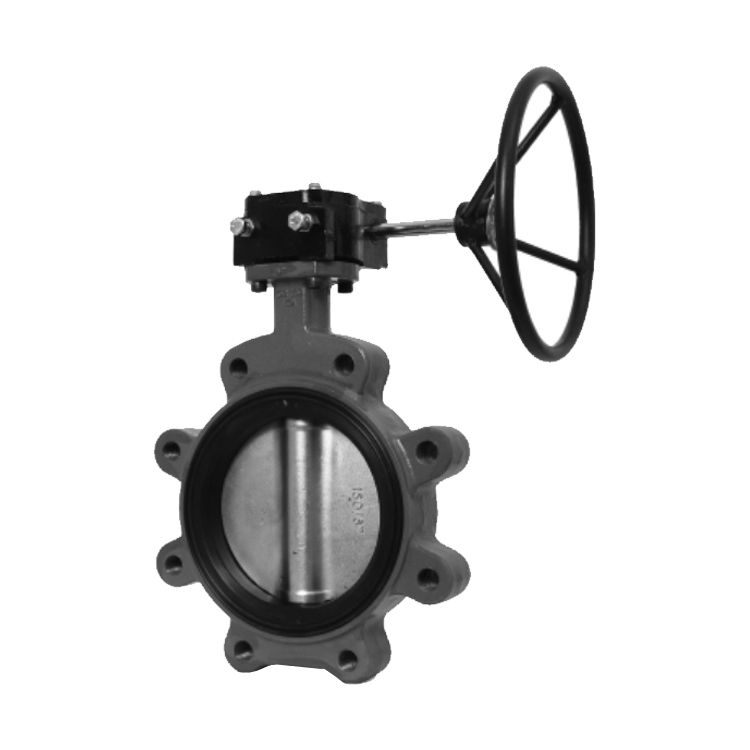

Gear
Valve up to 24" Size can be direct mounted with gear operators for marvel operation gear operates can be attached with chain wheel operators for opening or closing valves located on pipe lines at high elevators.

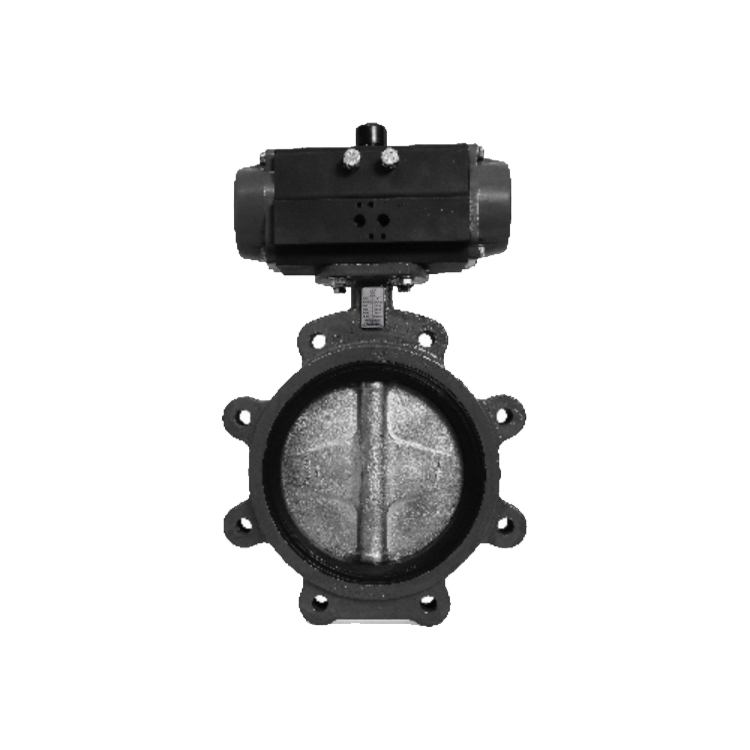

Actuator
Au valves can be direct mounted with pneumatic Actuator or Electric Actuators and access for complete automation options controlled valves can be mounted with manual override.
Seat Selection Guide
| Seat Type | Temperature Range | Media | |
|---|---|---|---|
| Max | Max | ||
| EPDM / White EPDM | -20°F (-29°C) | 302°F (150°C) | Water + Steam + Chemical |
| Buna - N / White Buna - N (Nitrite) | 0°F (-18°C) | 212°F (100°C) | Oil |
| Viton (FKM) | 0°F (-18°C) | 392°F (200°C) | All Oil |
| Silicon | 0°F (-18°C) | 392°F (200°C) | Hot Air Application & All Food Industries, Goods whether Resistance |
| Neoprene | 0°F (-18°C) | 240°F (120°C) | Moderate Oil Resistant |
| Viton Extreme | 0°F (-18°C) | 536°F (280°C) | All Oil |
