Globe Valve

Globe Valve Globe Valve
Globe Valve
Globe Valve

Globe Valve

Conformity To Standard & Codes

Design & Manufactuting API 600 / ASME B16.34 / BS1873
Inspection & Testing API 598 / EN 12666 Part 1
Valve Face to Face ANSI B 16.10
End Connection ASME B 16.5, Class 150, 300
Pressure & Temp. Rating ANSI B 16.34

Valves Inspection & Testing

Test Class 150# Class 300#
Body (Hyd.) 31kg/cm2 78kg/cm2
Seat (Hyd.) 58kg/cm2 23kg/cm2
Back Seat (Air) 23g/cm2 58kg/cm2
Air Test (Seat Air) 7kg/cm2 7kg/cm2

Standard Material of Construction

Body : Cast Iron / A216 Gr WCB / ASTM A351 Gr. CF8 / CF8M Bonnet : Cast Iron / A216 Gr WCB / ASTM A351 Gr. CF8 / CF8M Disc : AISI410 (13% Cr.) / SS304 / SS316 Stem : AISI410 (13% Cr.) / SS304 / SS316 Seat : AISI410 (13% Cr.) / SS304 / SS316M Disc Nut : AISI410 (13% Cr.) / SS304 / SS316 Bonnet Gasket : Spiral Wound Gasket Back Seat Bush : AISI 410 / Ss304 / SS316 Gland Packing : Moulded Graphite Gland Flange : M.S. / SS304 / SS316 Bonnet Stud & Nut : M.S. / S.S. / ASTM A193 Gr. B7 / ASTM A194 Gr. 2H Eye Bolt : M.S. / SS304 / SS316 Cross Pin : M.S. / SS304 / SS316 Yoke Nut : D.I / M.S. Hand Wheel : D.I. Hand Wheel Nut : M.S. / SS304 / Ss316 Grease Nipple : (Optional) Grub Screw : (Optional)

Sailent Features

→ Outside screw rising stem rising hand wheel construction threads are away from. → Body and bonnet made from high quality casting with liberal section. → Seat ring screwed into the body are replaceable. → Back seat ring features facilitate repacking of the stuffing box on line with valve in fully open position. → Swinging eye bolts facilitate easy access to the stuffing box. → Plug type disc design to give leak tight seat ring over a long period of in built wear life. → Stellite seat ring and disc can also be offered on special request. → The valve are higher pressure and bigger sizes are provided with thrust bearing and also with sear drive arrangement and flange also can be offered for different standards.

All Dimensions are in mm Unless Specified (150#)

Size FF ∅D ∅RF T N ∅J 'K' P.C.D H ∅WH
25 127 110 51 11.6 4 16 79.4 285 100
40 165 125 73 14.7 4 16 98.4 310 150
50 203 150 92 16.3 4 19 120.7 360 200
65 216 180 105 17.9 4 19 139.7 425 200
80 241 190 127 19.5 4 19 152.4 443 225
100 292 230 157 24.3 8 19 190.5 577 250
125 356 255 286 24.3 8 22 215.5 685 350
150 406 280 216 25.9 8 22 241 790 400
200 495 345 270 29 8 22 298.5 1013 450
250 622 405 324 30.6 12 25 362 1215 600
300 698 485 381 32.2 12 25 431.8 1246 650

All Dimensions are in mm Unless Specified (300#)

Size FF ∅D ∅RF T N ∅J 'K' P.C.D H ∅WH
25 203 125 51 17.5 4 19 88.9 285 200
40 229 155 73 19.1 4 22 114.3 310 200
50 267 165 92 20.7 8 19 127 390 250
65 292 190 105 23.9 8 22 149.2 500 250
80 318 210 127 27 8 22 168.3 500 300
100 356 255 157 30.2 8 22 200 577 350
125 400 280 186 33.4 8 22 235 790 400
150 445 320 216 35 12 22 269.9 790 450
200 533 380 270 39.7 12 25 330.2 1030 500
250 622 445 324 46.1 16 29 387.4 1215 600
300 711 520 381 49.3 16 32 450.8 1400 700

Applications

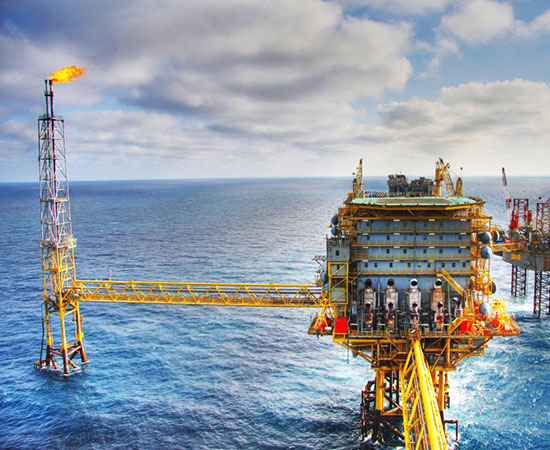

Oil Refineries

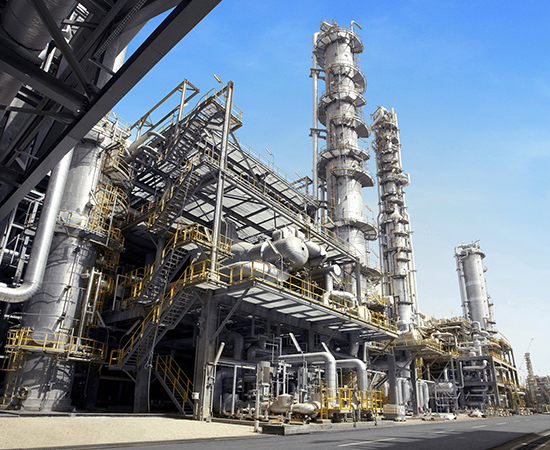

Petro Chemical Industries

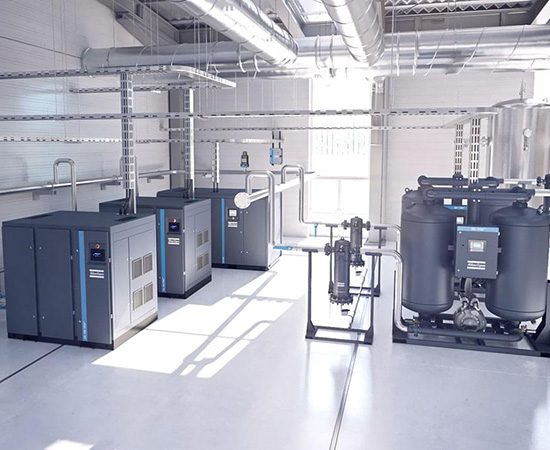

Compressed Air Line

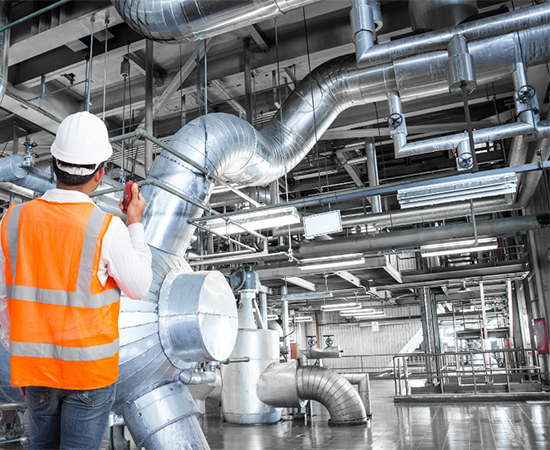

Steam Industries

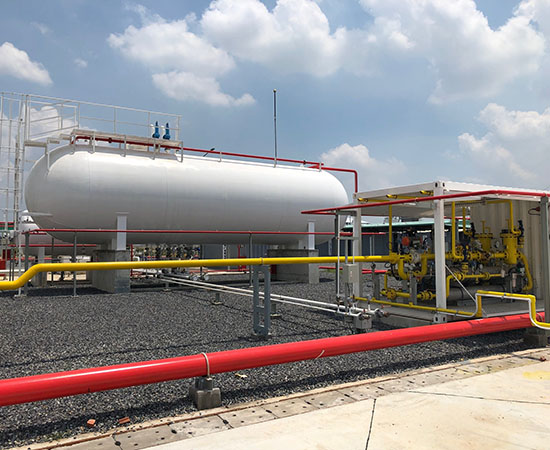

Gas Industries

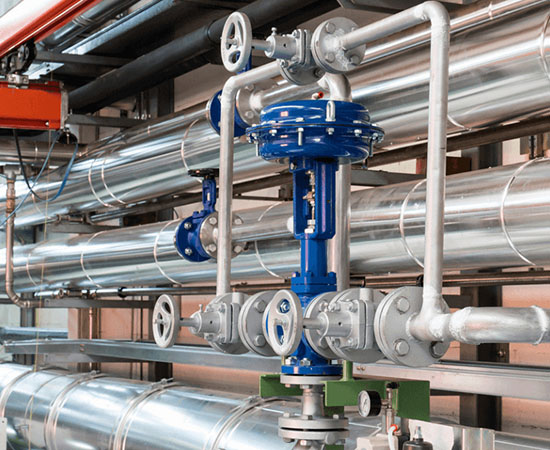

Water Line Process

The Most reduced Cost System Is To Pick Solid Unitech Valves.

Unitech Valve, with its accomplished trained professionals, spends significant time in assembling modern valves and offers specialized help and one-stop answers for the worldwide market.
