3 Way Ball Valve

3 Way Ball Valve 3 Way Ball Valve 3 Way Ball Valve 3 Way Ball Valve
3 Way Ball Valve
3 Way Ball Valve
3 Way Ball Valve
3 Way Ball Valve

3 Way Ball Valve

Reference Standards

Design & Manufacturing ASME B16.34/BS EN ISO 17292
Valve Face to Face ASME B 16.10
Flange Standard Confirmity ASME B 16.5 Class 150, 300
Inspection & Testing API 598 / ISO - 5208

Design Features

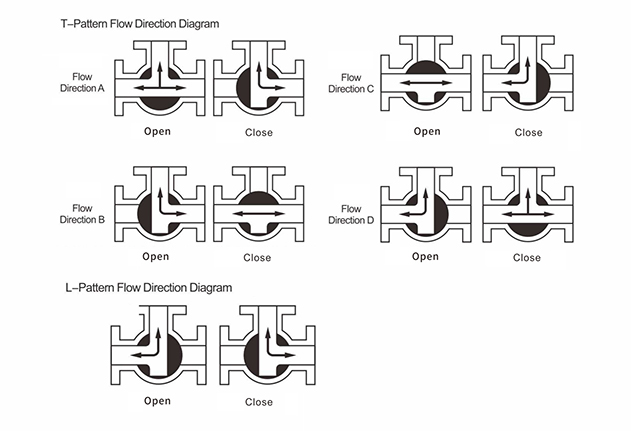

Valve : 3-Way Ball Valve Seat Type : PTFE, GFT, CFT End Connection : Flanged/Screwed Size Range : 15 NB to 150 NB for reduced Port/ Full Port Pressure Rating : Class 150, & 300 Seat Leakage : Class VI - Soft Seat Operation : Hand Lever/Gear/ Actuator (Electrical / Pneumatic) Port Type : L-Port / T-Port

Standard Material of Construction

Body : WCB / CF8 / CF8M / CF3 / CF3M Connector : WCB / CF8 / CF8M / CF3 / CF3M Ball : CF8 / CF8M / CF3 / CF3M Seat : PTFE / GFT / CFT Stem Pin : SS410 / SS304 / SS316 Gland Bush : SS410 / SS304 / SS316 Gland : WCB / CF8 / CF8M Gland Packing : PTFE / GFT / CFT Body Seal : PTFE / GFT / CFT Handle : Steel Plated Sleeve : PVC
3 Way Ball Valve 3 Way Ball Valve

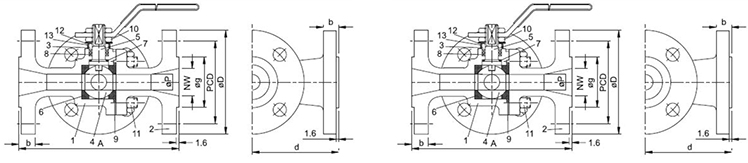

All Dimensions are in mm Unless Specified (150#)

Size A ∅P NW ∅D d b ∅g PCD Hole" Hole
15 108 9.5 13 89 70 11.5 35 60.5 16 4
20 117 13 19 98 76 13 43 70 16 4
25 127 19 25 108 80 11.5 51 79.5 16 4
32 140 25 32 117 86 13 64 89 16 4
40 165 32 38 127 98 14.5 73 98.5 16 4
50 178 38 50 152 107 16 92 120.6 20 4
65 190 50 65 178 125 17.5 105 139.7 20 4
80 203 58 76 191 133 19.5 127 152.4 20 4
100 229 76 98 229 157 24 157 190.5 20 8
150 267 98 148 279 216 25.5 216 241.3 23 8

All Dimensions are in mm Unless Specified (300#)

Size A ∅P NW ∅D d b ∅g PCD Hole" Hole
15 140 9.5 13 95 76 14.5 35 66.7 16 4
20 152 13 19 117 96 16 43 82.5 20 4
25 165 19 25 124 100 17.5 51 89 20 4
32 178 25 32 133 106 19.5 64 98.4 20 4
40 190 32 38 156 120 22 73 114.3 23 4
50 216 38 50 165 125 22.5 92 127 20 8
65 241 50 65 191 140 25.5 105 149.2 23 8
80 283 58 76 210 152 29 127 168.3 23 8
100 305 76 98 254 178 32 157 200 23 8
150 403 98 148 318 215 37 216 269.9 23 12

Applications

Oil Refineries
Chemical & Solvent Industries
Petro Chemical Industries

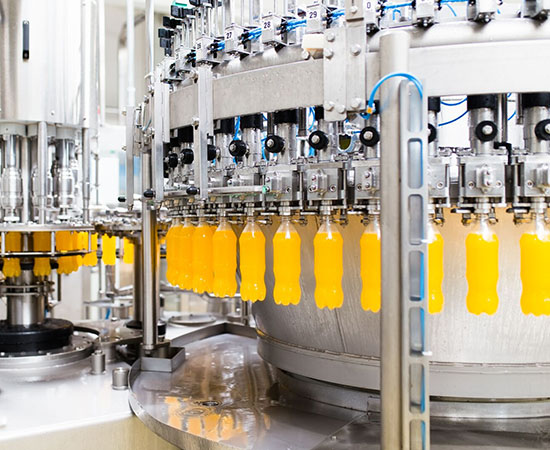

Process Industries

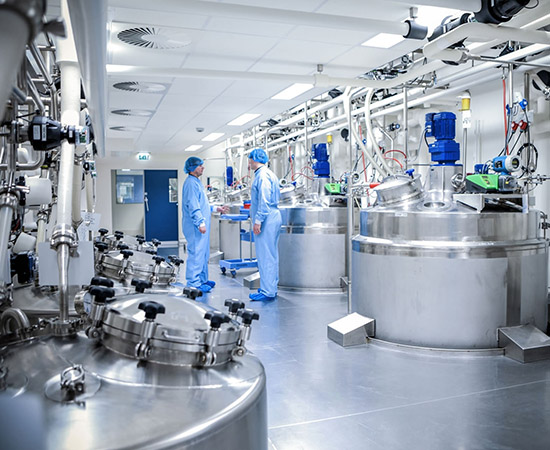

Food & Pharmaceuticals Industries
Compressed Air Line
Gas Industries
Water Line Process
